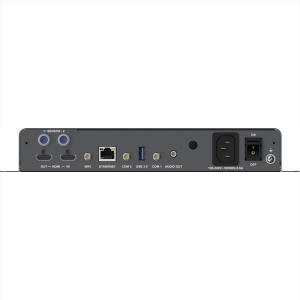

Video Processor Hikvision Ds-D42B02-N

DS-D42B02-N

Price: 11.863.200
    +

  • Khả năng tải lên tới 1.300.000 pixel, chiều rộng tối đa:
  • 4096 pixel, chiều cao tối đa: 4096 pixel
  • 2 cổng Gigabit Ethernet
  • 1x Cổng đầu ra HDMI1.4, hỗ trợ lên đến 1080P@60Hz
  • 1 cổng đầu vào HDMI1.4, hỗ trợ chia tỷ lệ toàn màn hình ở chế độ đồng bộ

Specification

Interface

Video Audio Input

Internal video sourceHDMI x 1

Video Audio Output

1 × AUDIO OUT2 x network interface1 × HDMI OUT

Network Interface

2

Control Interface

RJ45 × 1WiFi AP

Processing Performance

Max. Load Capacity

1300000 pixels

Frame Frequency

50/60 Hz

Refresh Rate

60 HZ

Processing Depth

8 bit

Grey Level

16 bit

Display Color

281 trillion

Brightness Control

0 to 255 adjustable

Max. Resolution of Bar Display

4096 x 4096 pixels

Power

Max. Consumption

18 W

Average Consumption

6 W

Input Voltage

100-240V~

Working Environment

Working Temperature

-20°C to 60°C (-4 °F to 140 °F)

Working Humidity

0% to 80% RH (non-condensing)

Storage Temperature

-40 °C to 80 °C (-40 °F to 176 °F)

Storage Humidity

0% to 80% RH (non-condensing)

General

Product Dimensions (W × H × D)

274.3 mm × 139.0 mm × 40.0 mm ( 10.80'' x 5.47'' x 1.57'' )

Package Dimensions (W × H × D)

385.0 mm × 280.0 mm × 75.0 mm ( 15.16'' x 11.02'' x 2.95'' )

Net Weight

1.23 Kg ( 2.7 lb )

Gross Weight

1.48 Kg ( 3.3 lb )

Packing List

Warranty Card × 1, Quality Certificate × 1, Restrictive Substances Table × 1,WiFi

antenna x 1Power cable x 1
