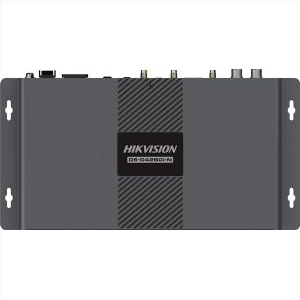

- Products VIDEO PROCESSOR B SERIES CONTROLLER
- Loading capacity up to 650,000 pixels, maximum width:
- 4096 pixels, maximum height: 4096 pixels
- 2x Gigabit Ethernet ports
- Allows for play content imported from a USB drive and firmware upgrade over USB
|
Specification |
|
|
Interface |
|
|
Video ＆ Audio Input |
Internal video source |
|
Video ＆ Audio Output |
1 × AUDIO OUT，1 x network interface |
|
Network Interface |
1 |
|
Control Interface |
RJ45 × 1，WiFi AP |
|
Processing Performance |
|
|
Max. Load Capacity |
650000 pixels |
|
Frame Frequency |
50/60 Hz |
|
Refresh Rate |
60 HZ |
|
Processing Depth |
8 bit |
|
Grey Level |
16 bit |
|
Display Color |
281 trillion |
|
Brightness Control |
0 to 255 adjustable |
|
Max. Resolution of Bar Display |
4096 x 4096 pixels |
|
Power |
|
|
Max. Consumption |
18 W |
|
Average Consumption |
6 W |
|
Input Voltage |
100-240V |
|
Working Environment |
|
|
Working Temperature |
-20°C to 60°C (-4 °F to 140 °F) |
|
Working Humidity |
0% to 80% RH (non-condensing) |
|
Storage Temperature |
-40 °C to 80 °C (-40 °F to 176 °F) |
|
Storage Humidity |
0% to 80% RH (non-condensing) |
|
General |
|
|
Product Dimensions (W × H × D) |
274.3 mm × 139.0 mm × 40.0 mm ( 10.80'' x 5.47'' x 1.57'' ) |
|
Package Dimensions (W × H × D) |
385.0 mm × 280.0 mm × 75.0 mm ( 15.16'' x 11.02'' x 2.95'' ) |
|
Net Weight |
1.23 Kg ( 2.7 lb ) |
|
Gross Weight |
1.48 Kg ( 3.3 lb ) |
|
Packing List |
Warranty Card × 1, Quality Certificate × 1, Restrictive Substances Table × 1,WiFi antenna x 1，Power cable x 1 |
